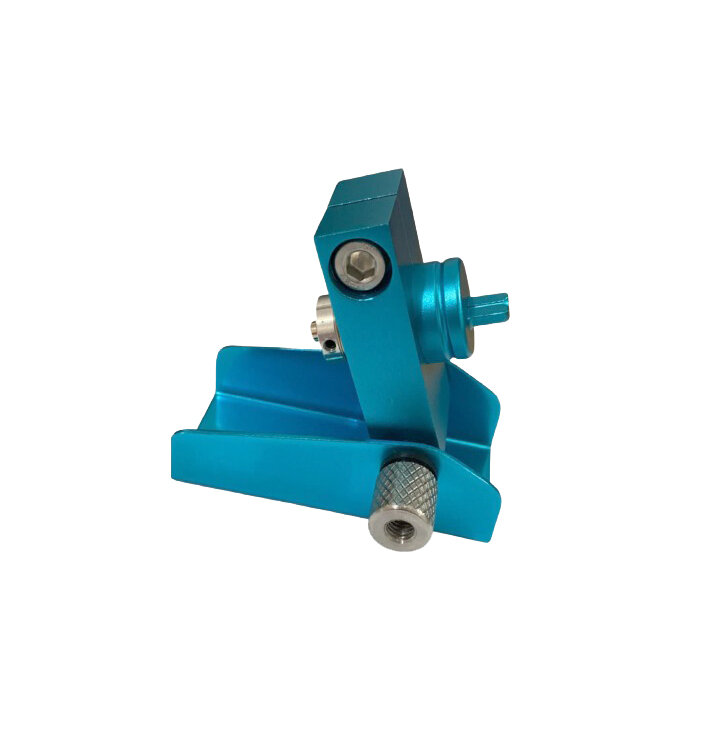

Trinov Bare Fiber
TNS-125F Fiber Pigtail is a good tool for measuring Fiber characteristics. This applies to SM or MM fibers. The TNS-125F can be connected in any condition easily and quickly. The most important thing is that the insertion loss is below 0.3dB. Referring to Time Is Money, the outstanding feature provides fast and accurate measurement and research of various fiber optical properties. For example, OTDR connections, Optical Spectrum Analyzers, Light Sources, Power Meters and Fiber phones (for communication during fiber cable engineering), etc.
Specification :
Model: TNS-125F-SM (Singel-mode optical Fiber 9/125mm)
Insertion Loss: <0.3dB
Number of insertions: 10,000 min
Alignment Time: <1 second
Reflection Loss : -50dB type
Match oil : Index of refraction (ND) = 1.4729 +/-0.01 @25 C
Connector type : FC/UPC, SC/UPC
Operating Temperature : -10 to +50 C
